ECOS Industrial Models
Pellet burners
ECOS Industrial lineNEW!
Burners with a moving grate system
enabling combustion of low-quality pellets.
enabling combustion of low-quality pellets.
The ECOS Industrial line comprises high-power industrial pellet burners designed for continuous operation. The segmented walking grate technology (Walking Grate System) enables combustion of wood pellets and agri-pellets, including those with lower calorific value, reducing the risk of clinker formation and decreasing inspection frequency. The Easy Clean-Out System shortens seasonal service — the pull-out grate section enables quick inspection and cleaning. Grate plates made of heat-resistant cast iron InCroX®. PM dust emission ≤20 mg/m³.
Power range
from 350 to 500 kW
ECOS Industrial line models
ECOS Industrial line technologies
ECOS Industrial is an industrial line of high-power pellet burners (350–500 kW). Discover the Walking Grate System and industrial technologies.
Compare models in this series
Compare models in this series
| Parameter | ECOS 350 | ECOS 500 |
|---|---|---|
| Power range | 105–350 kW | 150–500 kW |
| Efficiency | up to 99% | up to 99% |
| Max fuel consumption | 80.21 kg/h | 114.58 kg/h |
| Weight | 175 kg | 200 kg |
| Mounting window | Ø 410 | Ø 410 |
| Min. chamber depth | ≥1400 | ≥1500 |
| Feeder length | 2.0 – 5.0 | 2.0 – 5.0 |
| Power supply | 230 V AC / 50 Hz | 230 V AC / 50 Hz |
| Details → | Details → |

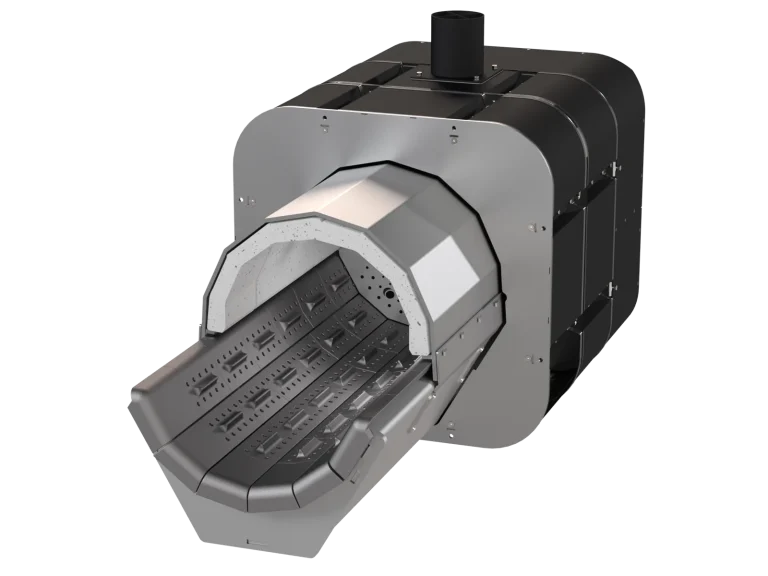

ECOS 350kW Burner
- Power range:
- 105–350 kW
- Efficiency:
- up to 99%
- Max fuel consumption:
- 80.21 kg/h
- Weight:
- 175 kg
- Mounting window:
- Ø 410
- Min. chamber depth:
- ≥1400
- Feeder length:
- 2.0 – 5.0
- Power supply:
- 230 V AC / 50 Hz
ECOS 500kW Burner
- Power range:
- 150–500 kW
- Efficiency:
- up to 99%
- Max fuel consumption:
- 114.58 kg/h
- Weight:
- 200 kg
- Mounting window:
- Ø 410
- Min. chamber depth:
- ≥1500
- Feeder length:
- 2.0 – 5.0
- Power supply:
- 230 V AC / 50 Hz

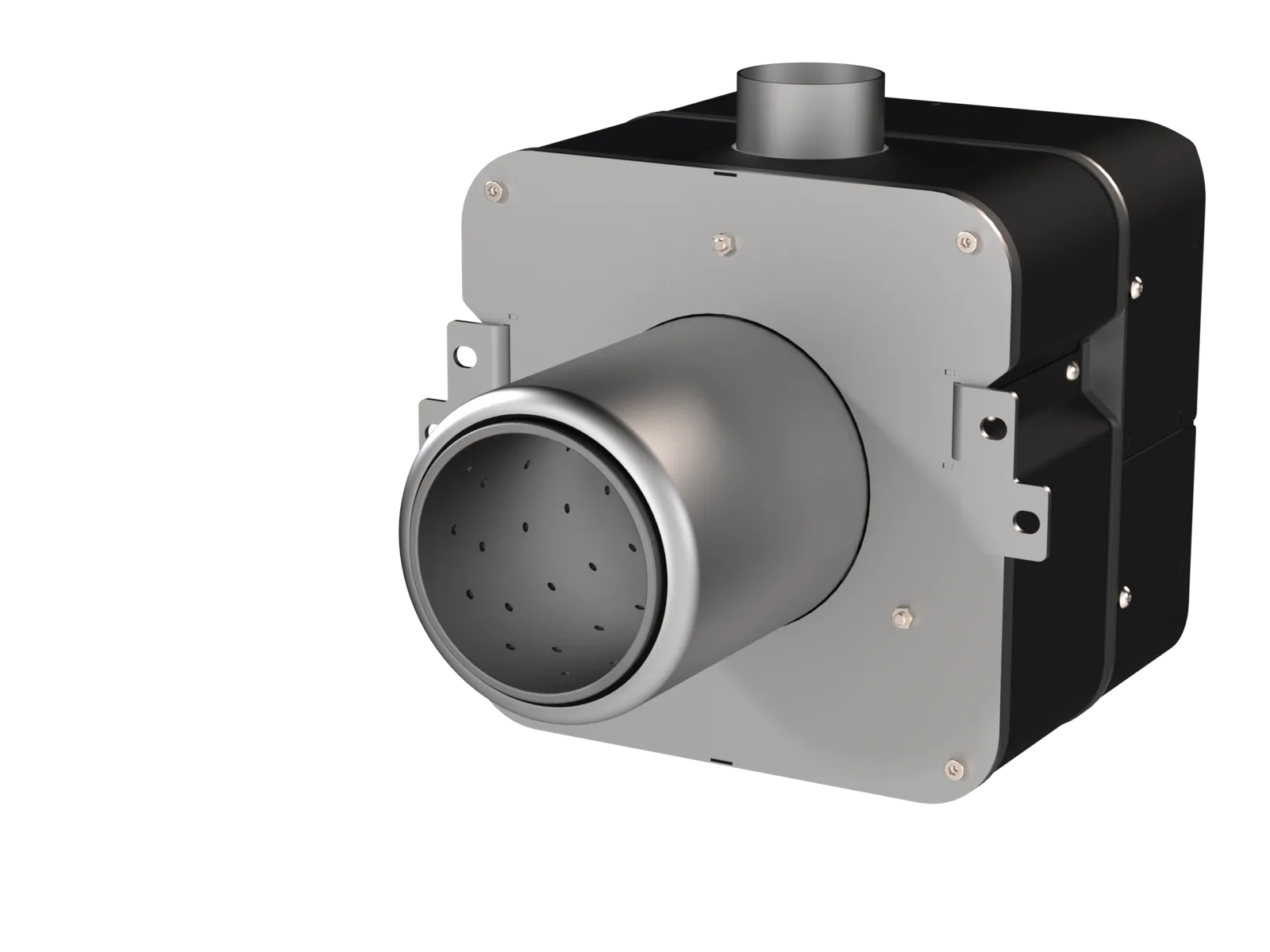

Revo EC HG line pellet burners
20 April 2026
Self-cleaning Revo 3-30 kW pellet burner with InCroX® rotary chamber for wood gasification boilers, Fan Flap sealing the blower chamber. 3-30 kW.
Revo EC line pellet burners
20 April 2026
Self-cleaning Revo pellet burner 3-30 kW with InCroX® rotary combustion chamber and EC fan, quiet operation, low power draw. Revo EC line, 3-30 kW.

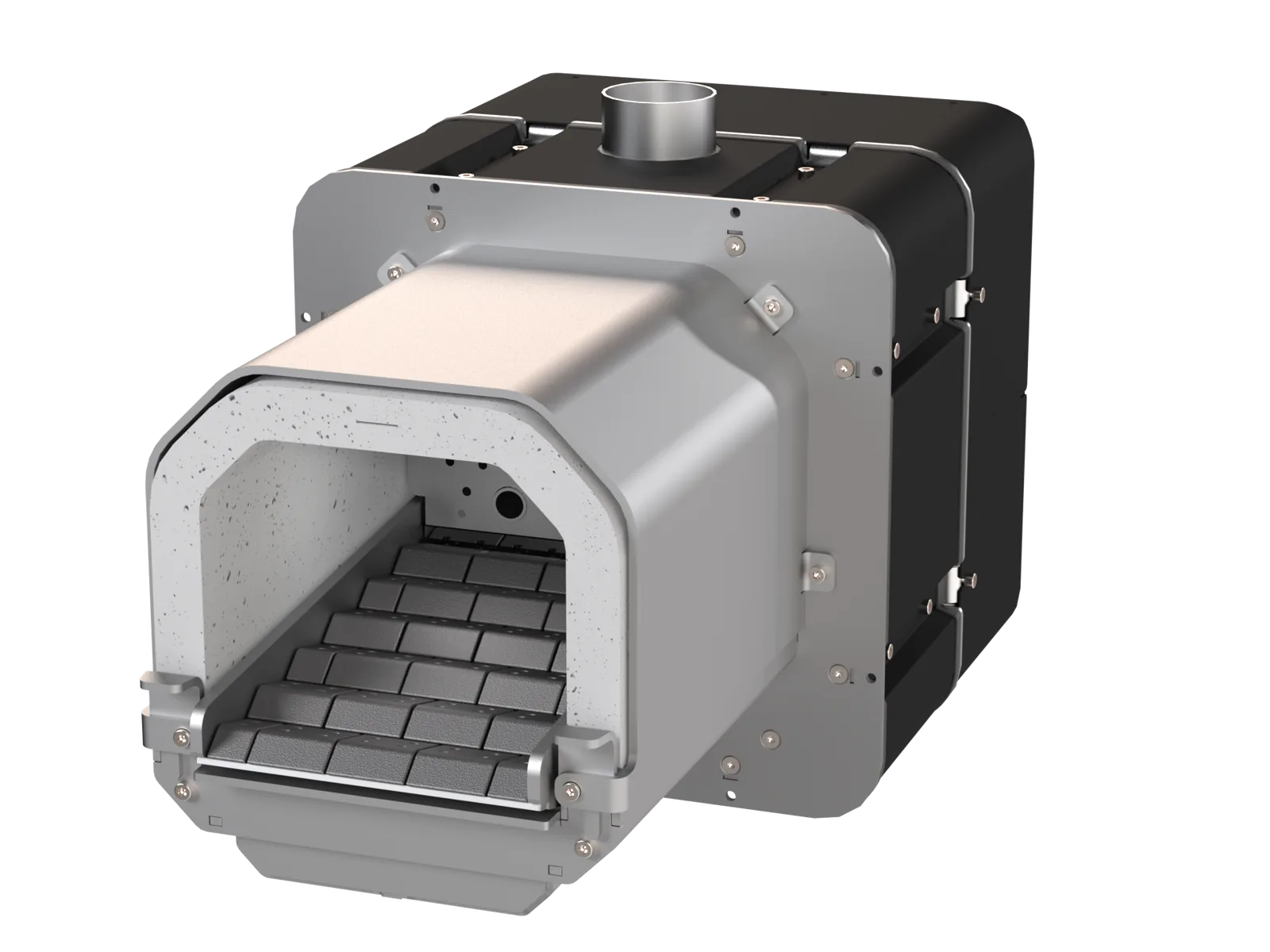

ECOS line pellet burners
20 April 2026
ECOS pellet burners with stepped moving grate (Multistage Grate System), Easy Clean-Out System. Wood pellets and agri-pellets. 50–250 kW.

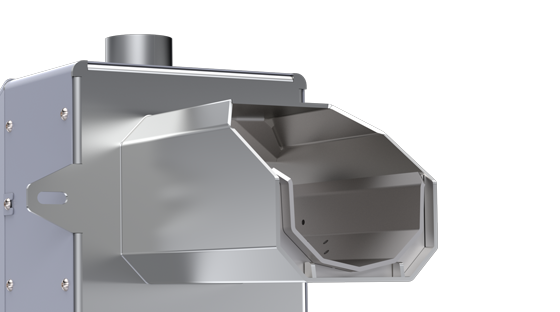

X line pellet burners
14 October 2019
Durable, reliable burners equipped with Combustion Chamber Fuel Mixing technology.

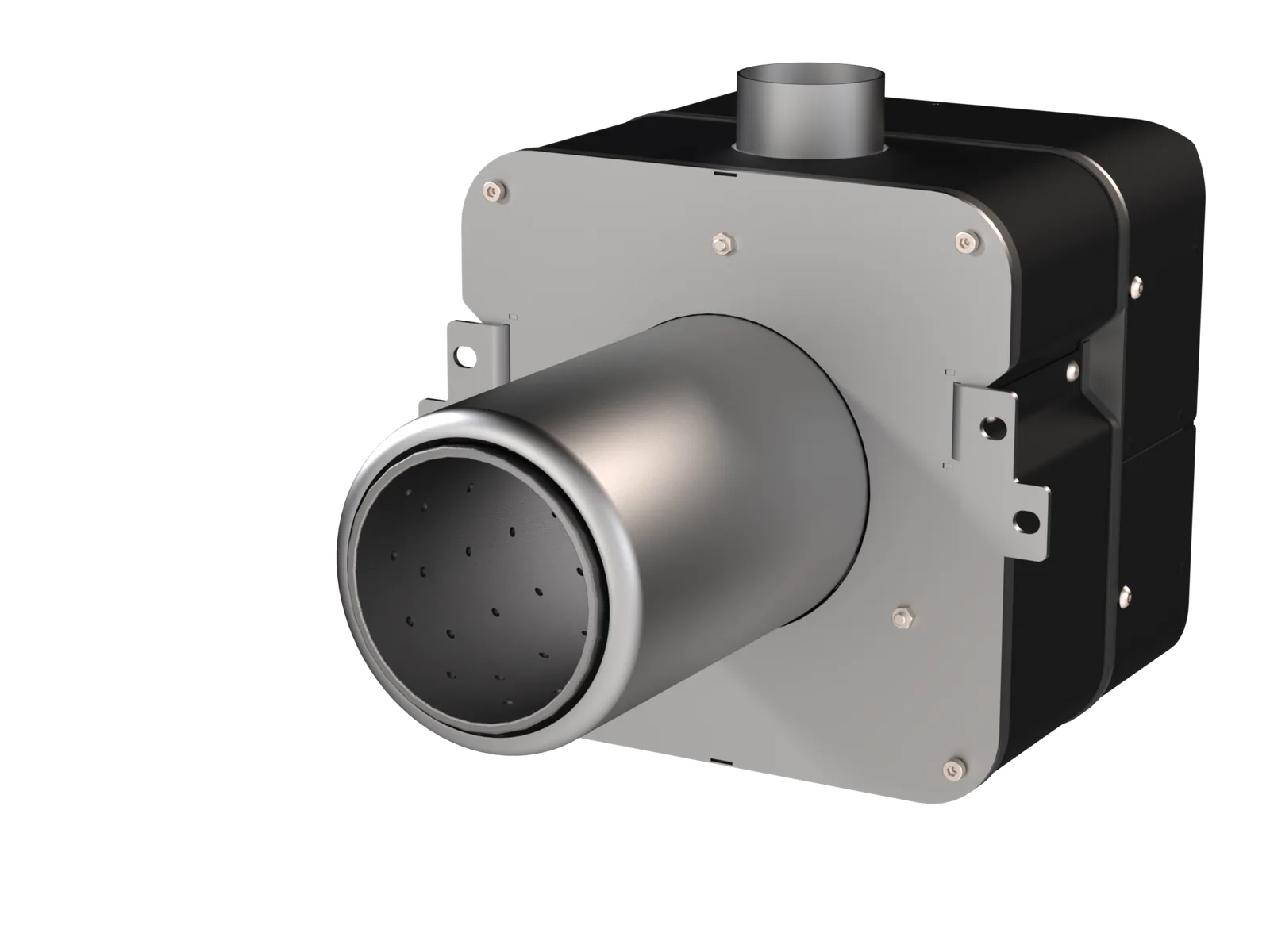

Revo line pellet burners
