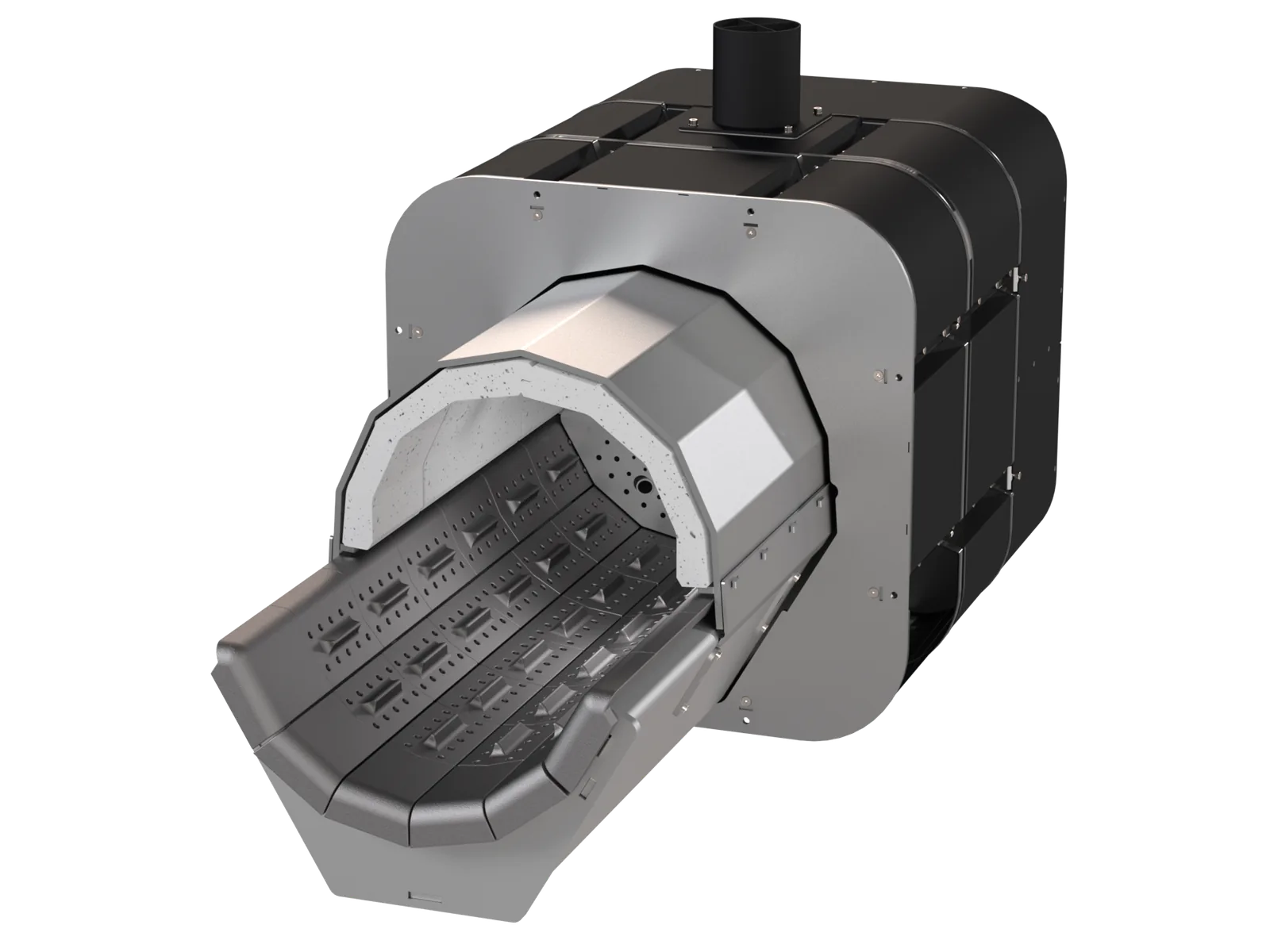

ECOS 350kW BURNER NEW

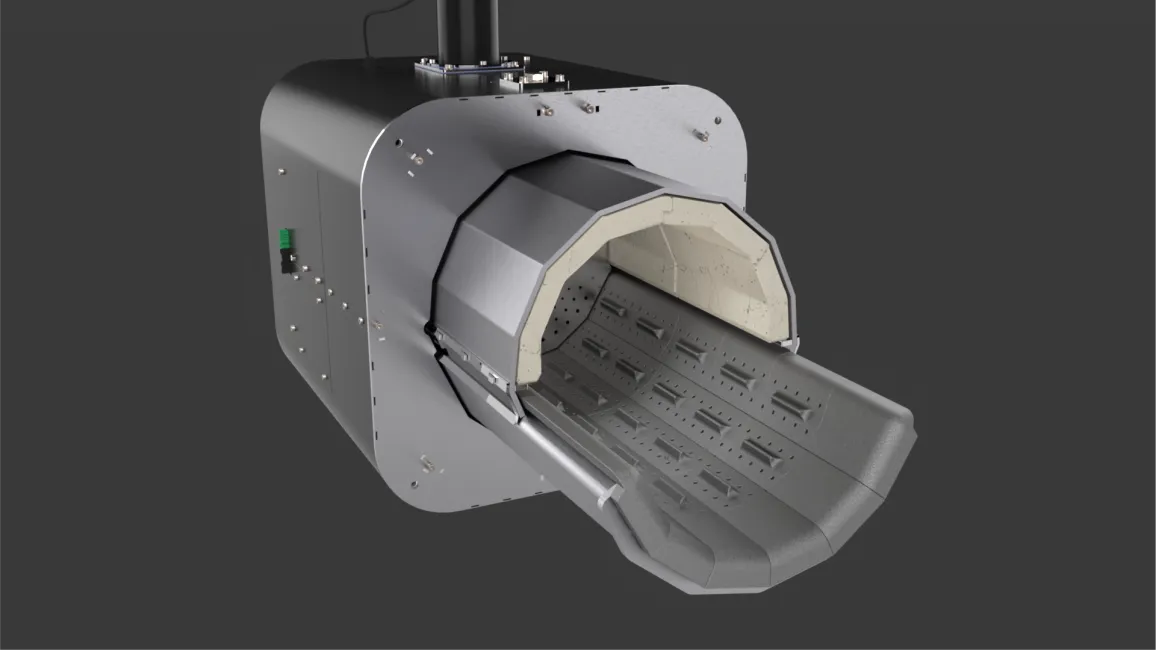

Industrial pellet burner with segmented moving grate (Walking Grate System). Designed for continuous operation in the most demanding installations. Enables combustion of lower-quality pellets with lower calorific value, reducing the risk of clinker formation. For heating plants, industrial facilities and large commercial buildings. For Class 5 Ecodesign boilers, efficiency up to 99%.
Power range
from 105 to 350 kW
Combustion chamber
Air and fuel
Electronics and control
Safety
Assembly and service
Specification
Specification
| Minimum power | 105 kW |
|---|---|
| Maximum power | 350 kW |
| Combustion efficiency | up to 99% |
| Ecodesign class | Class 5 |
| Compatible fuels | A1 wood pellets Ø 6-8 mm, low-quality pellets 6-8 mm |
| Max fuel consumption | 80.21 kg/h |
| Weight | 175 kg |
| Mounting window | Ø 410 mm |
| Min. chamber depth | ≥1400 mm |
| Chamber vacuum | 60 Pa |
| Power consumption (operation) | 407 W |
| Power consumption (ignition) | 707 W |
| External feeder length | 2.0 – 5.0 m |
| Power supply | 230 V AC / 50 Hz |

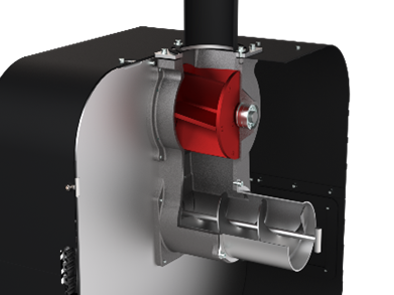

| Technologies | Overpressure Combustion System, Walking Grate System, InCroX®, Easy Clean-Out System, EC Fan, X.Board System, X.Gnite System, S.Control Controller, Quick assembly system, Grate position control, Cleaning without disassembly, X.Plug System, Quick Igniter Replacement System, Fire Barrier (ECOS Industrial), Refractory ceramic insert, Internal Feeder |
wymiary
Dimensions
E70 burner dimensions [mm]
| Symbol | Dimension [mm] | Description |
|---|---|---|
| A | 613 | total length |
| B | 260 | combustion chamber length |
| C | 240 | external chamber height |
| D | 230 | chamber width (front view) |
| E | 320 | total burner width |
| F | 350 | total burner height |
E70 mounting dimensions [mm]
| Symbol | Dimension [mm] | Description |
|---|---|---|
| E | 320 | total burner width |
| G | 260 | mounting opening width |
| H | 290 | mounting opening diagonal |
| J | 80 | margin from housing edge |
zestaw
Set
The set includes:
- Revo EC 16kW burner with InCroX® rotary combustion chamber
- S.Control Controller
- External feeder
