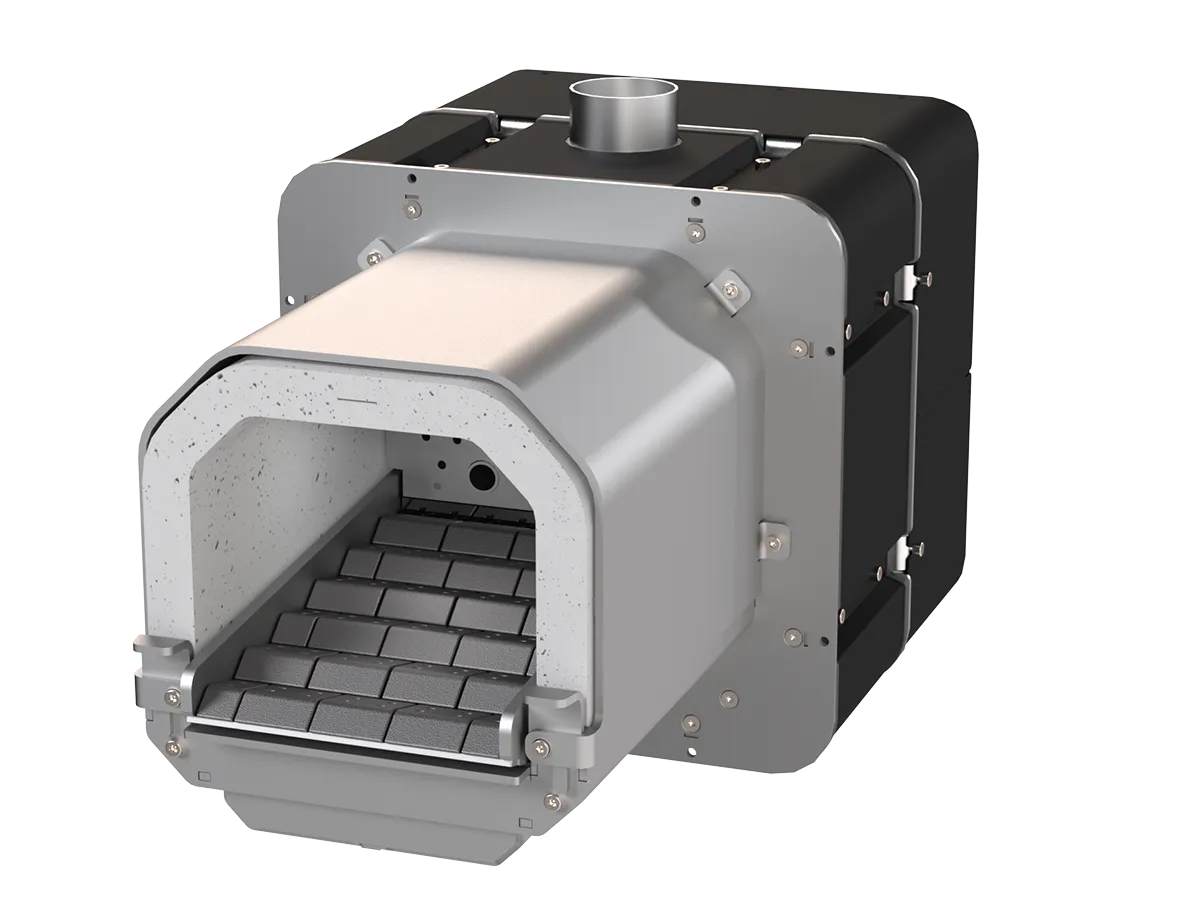

ECOS 50kW BURNER
Pellet burner with stepped grate featuring InCroX® and the Easy Clean-Out System. The heat-resistant stepped grate ensures effective ash removal and stable combustion conditions. Very easy clean-out system shortens seasonal service time. For Class 5 Ecodesign boilers, efficiency up to 99%.
Power range
from 15 to 50 kW
Combustion chamber
Air and fuel
Electronics and control
Safety
Assembly and service
Specification
Specification
| Minimum power | 15 kW |
|---|---|
| Maximum power | 50 kW |
| Combustion efficiency | up to 99% |
| Ecodesign class | Class 5 |
| Compatible fuels | wood pellets Ø 6–8 mm, low-quality pellets 6-8 mm |
| Max fuel consumption | 11.46 kg/h |
| Weight | 48 kg |
| Mounting window | □ 260 mm |
| Min. chamber depth | ≥650 mm |
| Chamber vacuum | 25 Pa |
| Power consumption (operation) | 109 W |
| Power consumption (ignition) | 409 W |
| External feeder length | 2.0 – 5.0 m |
| Power supply | 230 V AC / 50 Hz |
| Technologies | Overpressure Combustion System, InCroX®, Easy Clean-Out System, EC Fan, X.Board System, X.Gnite System, S.Control Controller, Quick assembly system, Multistage Grate System, Grate position control, Cleaning without disassembly, X.Plug System, Quick Igniter Replacement System, Inlet with fire barrier, Refractory ceramic insert, Internal Feeder |
wymiary
Dimensions
E50 burner dimensions [mm]
| Symbol | Dimension [mm] | Description |
|---|---|---|
| A | 580 | total length |
| B | 238 | combustion chamber length |
| C | 210 | external chamber height |
| D | 230 | chamber width (front view) |
| E | 320 | total burner width |
| F | 350 | total burner height |
E50 mounting dimensions [mm]
| Symbol | Dimension [mm] | Description |
|---|---|---|
| E | 320 | total burner width |
| G | 260 | mounting window width |
| H | 290 | mounting window diagonal |
| J | 80 | margin from housing edge |
zestaw
Set
The set includes:
- Revo EC 16kW burner with InCroX® rotary combustion chamber
- S.Control Controller
- External feeder
