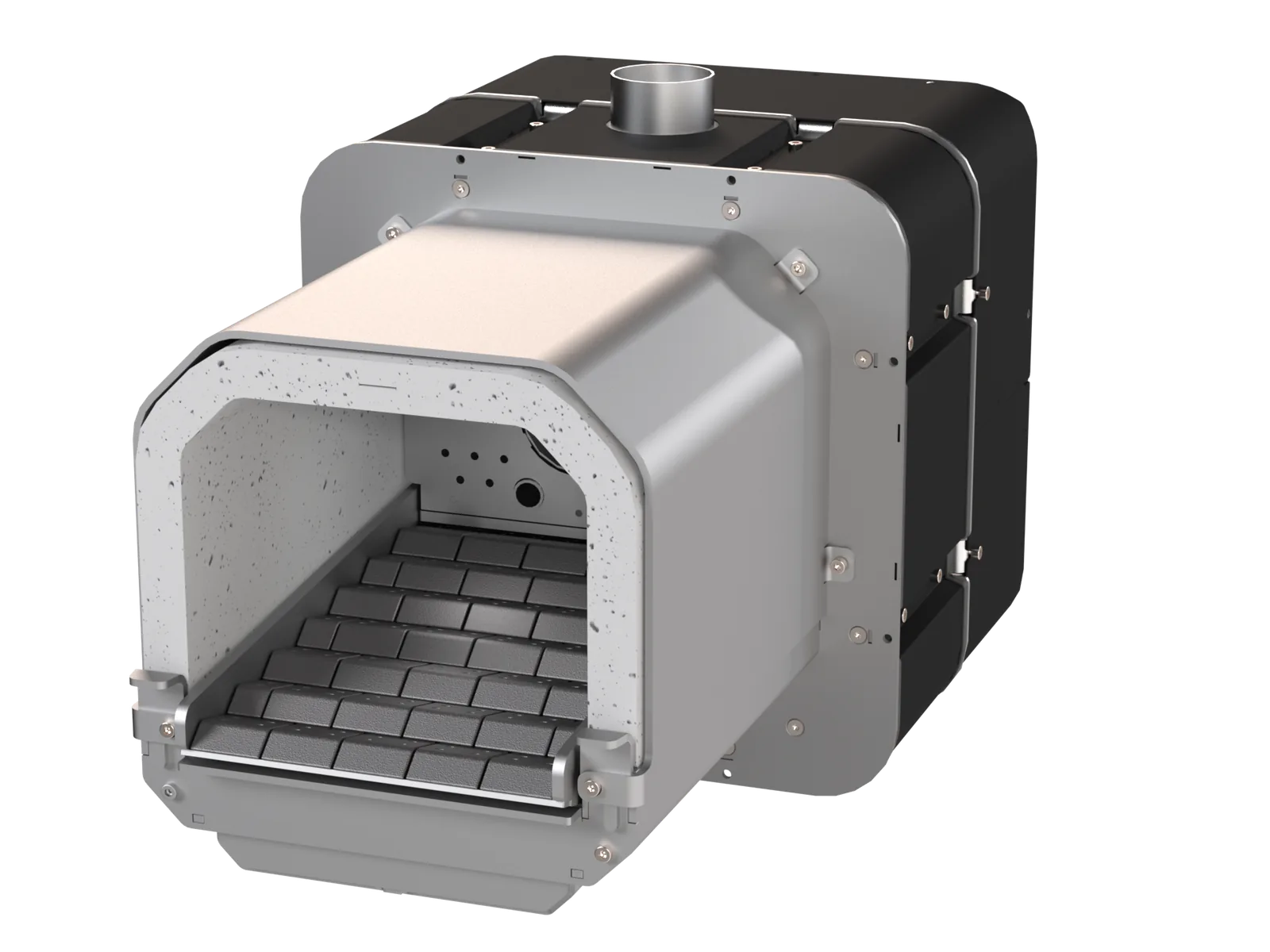

ECOS 130kW BURNER NEW
Pellet burner with InCroX® stepped grate and Easy Clean-Out system. The grate design combined with ECOS ensures effective ash removal and stable combustion conditions during continuous operation. A solution for medium-power commercial and industrial boiler rooms. For Class 5 Ecodesign boilers, efficiency up to 99%.
Power range
from 39 to 130 kW
Combustion chamber
Air and fuel
Electronics and control
Safety
Assembly and service
Specification
Specification
| Minimum power | 39 kW |
|---|---|
| Maximum power | 130 kW |
| Combustion efficiency | up to 99% |
| Ecodesign class | Class 5 |
| Compatible fuels | A1 wood pellets Ø 6-8 mm, low-quality pellets 6-8 mm |
| Max fuel consumption | 29.79 kg/h |
| Weight | 60 kg |
| Mounting window | □ 300 mm |
| Min. chamber depth | ≥930 mm |
| Chamber vacuum | 35 Pa |
| Power consumption (operation) | 166 W |
| Power consumption (ignition) | 466 W |
| External feeder length | 2.0 – 5.0 m |
| Power supply | 230 V AC / 50 Hz |
| Technologies | Overpressure Combustion System, InCroX®, Easy Clean-Out System, EC Fan, X.Board System, X.Gnite System, S.Control Controller, Quick assembly system, Multistage Grate System, Grate position control, Cleaning without disassembly, X.Plug System, Quick Igniter Replacement System, Inlet with fire barrier, Refractory ceramic insert, Internal Feeder |
wymiary
Dimensions
E130 burner dimensions [mm]
| Symbol | Dimension [mm] | Description |
|---|---|---|
| A | 657 | total length |
| B | 302 | combustion chamber length |
| C | 280 | external chamber height |
| D | 270 | chamber width (front view) |
| E | 360 | total burner width |
| F | 390 | total burner height |
E130 mounting dimensions [mm]
| Symbol | Dimension [mm] | Description |
|---|---|---|
| E | 360 | total burner width |
| G | 300 | mounting window width |
| H | 345 | mounting window diagonal |
| J | 100 | margin from housing edge |
zestaw
Set
The set includes:
- Revo EC 16kW burner with InCroX® rotary combustion chamber
- S.Control Controller
- External feeder
