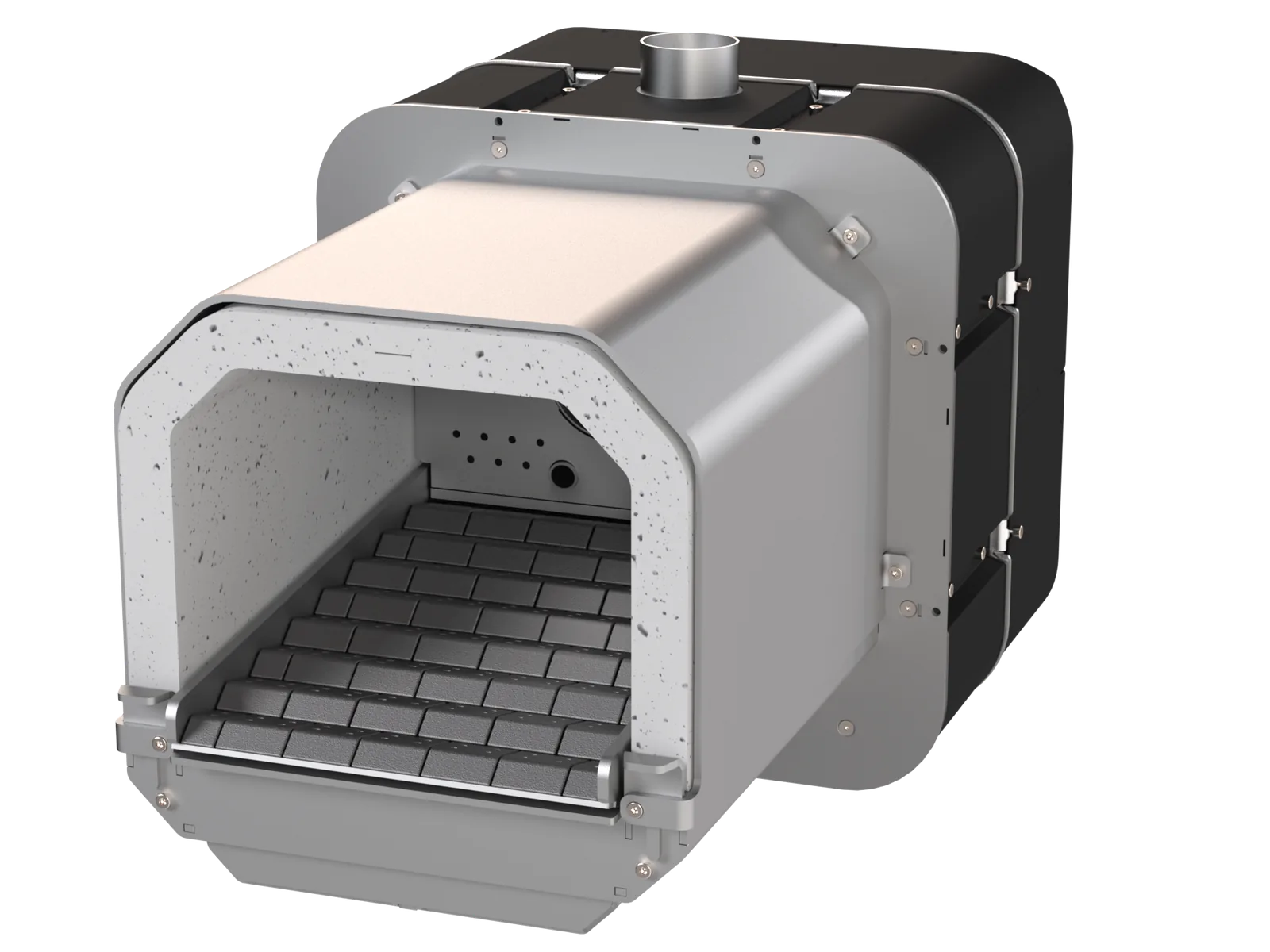

ECOS 200kW BURNER NEW
Pellet burner with InCroX® stepped grate and Easy Clean-Out system. The removable grate module and inspection flap in the air chamber significantly reduce seasonal service time. Stable combustion conditions during long-term operation under high loads. For industrial boiler rooms, heating plants and large commercial facilities. For Class 5 Ecodesign boilers, efficiency up to 99%.
Power range
from 60 to 200 kW
Combustion chamber
Air and fuel
Electronics and control
Safety
Assembly and service
Specification
Specification
| Minimum power | 60 kW |
|---|---|
| Maximum power | 200 kW |
| Combustion efficiency | up to 99% |
| Ecodesign class | Class 5 |
| Compatible fuels | A1 wood pellets Ø 6–8 mm, low-quality pellets 6–8 mm |
| Max fuel consumption | 45.83 kg/h |
| Weight | 75 kg |
| Mounting window | □ 340 mm |
| Min. chamber depth | ≥1150 mm |
| Chamber vacuum | 50 Pa |
| Power consumption (operation) | 196 W |
| Power consumption (ignition) | 496 W |
| External feeder length | 2.0 – 5.0 m |
| Power supply | 230 V AC / 50 Hz |
| Technologies | Overpressure Combustion System, InCroX®, Easy Clean-Out System, EC Fan, X.Board System, X.Gnite System, S.Control Controller, Quick assembly system, Multistage Grate System, Grate position control, Cleaning without disassembly, X.Plug System, Quick Igniter Replacement System, Inlet with fire barrier, Refractory ceramic insert, Internal Feeder |
wymiary
Dimensions
E200 burner dimensions [mm]
| Symbol | Dimension [mm] | Description |
|---|---|---|
| A | 700 | total length |
| B | 345 | combustion chamber length |
| C | 320 | external chamber height |
| D | 320 | chamber width (front view) |
| E | 400 | total burner width |
| F | 430 | total burner height |
E200 mounting dimensions [mm]
| Symbol | Dimension [mm] | Description |
|---|---|---|
| E | 400 | total burner width |
| G | 340 | mounting opening width |
| H | 390 | mounting opening diagonal |
| J | 120 | margin from housing edge |
zestaw
Set
The set includes:
- Revo EC 16kW burner with InCroX® rotary combustion chamber
- S.Control Controller
- External feeder
