Revo EC HG Models
Pellet burners
Revo EC HG lineNEW!
Rotary combustion chamber technology
controlled by a modern EC fan.
Designed for wood gasification boilers.
controlled by a modern EC fan.
Designed for wood gasification boilers.
The Revo EC HG (Holz Gas) line comprises rotary pellet burners dedicated to wood gasification boilers. Fan Flap technology automatically seals the burner's blower chamber: in wood gasification mode, the flap closes the air inlet, so the presence of the burner does not affect gasification parameters or boiler emissions. The rotary combustion chamber made of heat-resistant InCroX® cast steel provides self-cleaning during operation — ash and sinter are removed by the chamber's motion. The EC fan ensures quiet operation, low energy consumption and precise speed control. PM dust emission ≤10 mg/m³ — one of the lowest values in its class.
Power range
from 3 to 30 kW
Revo EC HG line technologies
Revo EC HG are burners dedicated to wood gasification boilers. Automatic sealing of the blower chamber, Fan Flap, Quick Assembly System. Discover HG technologies.
Compare models in this series
Compare models in this series
| Parameter | Revo EC HG 10 | Revo EC HG 16 | Revo EC HG 26 | Revo EC HG 30 |
|---|---|---|---|---|
| Power range | 3.0–10 kW | 4.8–16 kW | 7.8–26 kW | 9.0–30 kW |
| Efficiency | up to 99% | up to 99% | up to 99% | up to 99% |
| Max fuel consumption | 2.29 kg/h | 3.67 kg/h | 5.96 kg/h | 6.88 kg/h |
| Weight | 14 kg | 15 kg | 16 kg | 17.5 kg |
| Mounting window | Ø 135 | Ø 135 | Ø 135 | Ø 135 |
| Min. chamber depth | ≥300 | ≥350 | ≥400 | ≥520 |
| Feeder length | 0.5 – 4.0 | 0.5 – 4.0 | 0.5 – 4.0 | 0.5 – 4.0 |
| Power supply | 230 V AC / 50 Hz | 230 V AC / 50 Hz | 230 V AC / 50 Hz | 230 V AC / 50 Hz |
| Details → | Details → | Details → | Details → |

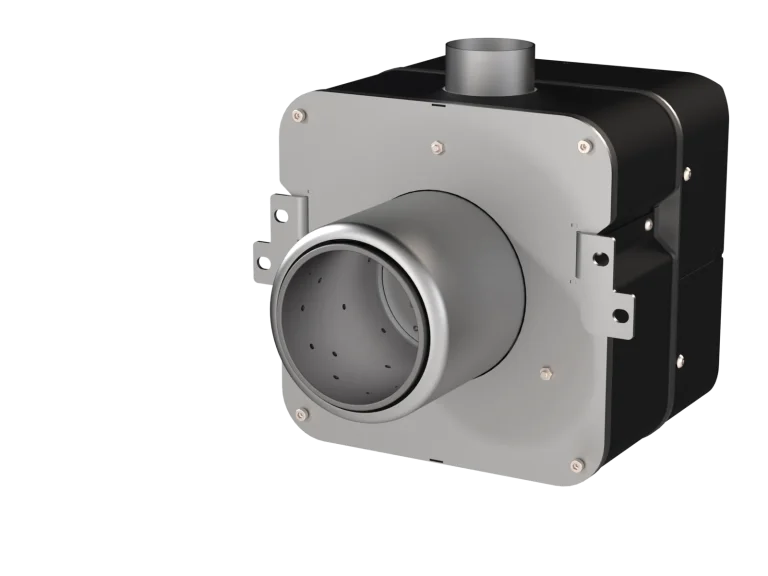

Revo EC HG 10kW Burner
- Power range:
- 3.0–10 kW
- Efficiency:
- up to 99%
- Max fuel consumption:
- 2.29 kg/h
- Weight:
- 14 kg
- Mounting window:
- Ø 135
- Min. chamber depth:
- ≥300
- Feeder length:
- 0.5 – 4.0
- Power supply:
- 230 V AC / 50 Hz
Revo EC HG 16kW Burner
- Power range:
- 4.8–16 kW
- Efficiency:
- up to 99%
- Max fuel consumption:
- 3.67 kg/h
- Weight:
- 15 kg
- Mounting window:
- Ø 135
- Min. chamber depth:
- ≥350
- Feeder length:
- 0.5 – 4.0
- Power supply:
- 230 V AC / 50 Hz

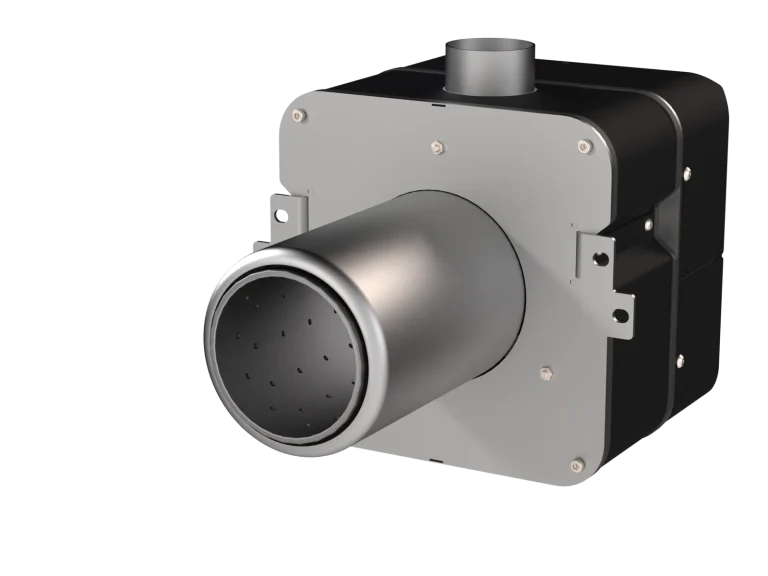

Revo EC HG 26kW Burner
- Power range:
- 7.8–26 kW
- Efficiency:
- up to 99%
- Max fuel consumption:
- 5.96 kg/h
- Weight:
- 16 kg
- Mounting window:
- Ø 135
- Min. chamber depth:
- ≥400
- Feeder length:
- 0.5 – 4.0
- Power supply:
- 230 V AC / 50 Hz

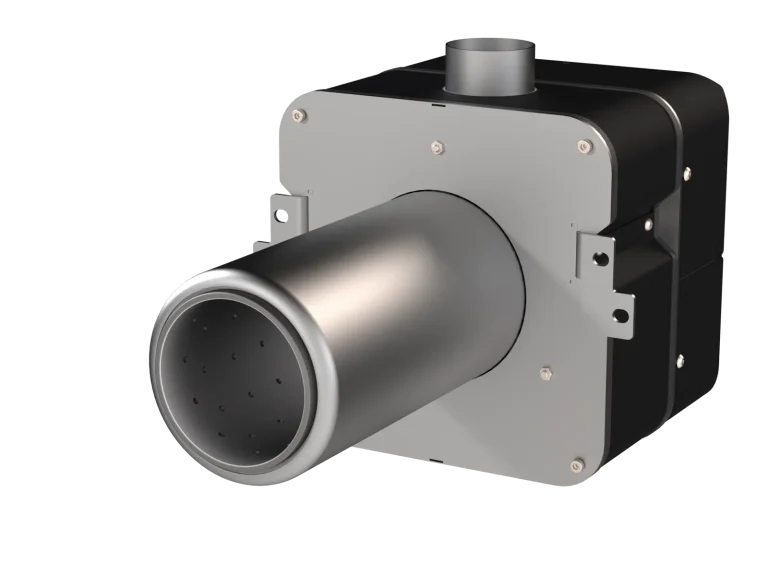

Revo EC HG 30kW Burner
- Power range:
- 9.0–30 kW
- Efficiency:
- up to 99%
- Max fuel consumption:
- 6.88 kg/h
- Weight:
- 17.5 kg
- Mounting window:
- Ø 135
- Min. chamber depth:
- ≥520
- Feeder length:
- 0.5 – 4.0
- Power supply:
- 230 V AC / 50 Hz
