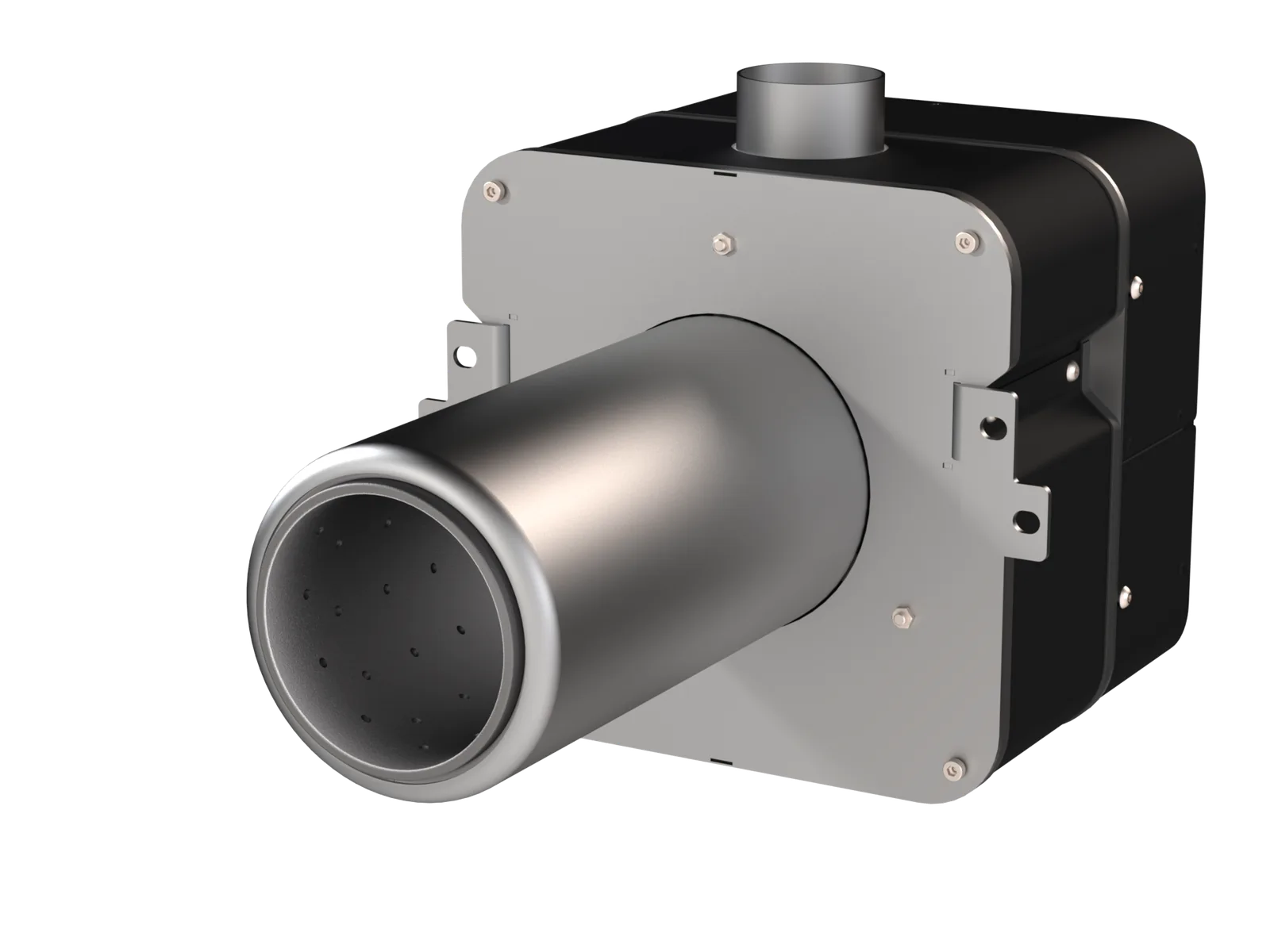

Revo EC HG 30kW BURNER NEW
Pellet burner dedicated to wood gasification boilers (Holz Gas). The largest in the Revo EC HG line. Automatic sealing of the blower chamber, InCroX® rotary combustion chamber, Quick Assembly System. For Class 5 Ecodesign boilers, efficiency up to 99%.
Power range
from 9.0 to 30 kW
Combustion chamber
Air and fuel
Electronics and control
Safety
Assembly and service
Specification
Specification
| Minimum power | 9.0 kW |
|---|---|
| Maximum power | 30 kW |
| Combustion efficiency | up to 99% |
| Ecodesign class | Class 5 |
| Compatible fuels | A1 wood pellets Ø 6–8 mm, low-quality pellets 6–8 mm |
| Max fuel consumption | 6.88 kg/h |
| Weight | 17.5 kg |
| Mounting window | Ø 135 mm |
| Min. chamber depth | ≥520 mm |
| Chamber vacuum | 15 Pa |
| Power consumption (operation) | 71 W |
| Power consumption (ignition) | 371 W |
| External feeder length | 0.5 – 4.0 m |
| Power supply | 230 V AC / 50 Hz |
| Technologies | Overpressure Combustion System, Air Blade System, InCroX®, EC Fan, Internal Feeder, X.Board System, X.Gnite System, S.Control Controller, Fan Flap, Quick assembly system, Easy combustion chamber maintenance, X.Plug System, Quick Igniter Replacement System, Inlet with fire barrier, Rotating Combustion Chamber System |
wymiary
Dimensions
zestaw
Set
The set includes:
- Revo EC 16kW burner with InCroX® rotary combustion chamber
- S.Control Controller
- External feeder
