Revo 26kW BURNER
Pellet burner. InCroX® rotary combustion chamber with Hybrid Drive System — the internal feeder motor and the fan motor combined into a single unit with a Hall sensor, enabling precise fuel and air dosing. Efficiency up to 99%, for Class 5 Ecodesign boilers.
Power range
from 7.8 to 26 kW
Combustion chamber
Air and fuel
Electronics and control
Safety
Assembly and service
Specification
Specification
| Minimum power | 7.8 kW |
|---|---|
| Maximum power | 26 kW |
| Combustion efficiency | up to 99% |
| Ecodesign class | Class 5 |
| Compatible fuels | wood pellets Ø 6–8 mm, low-quality wood pellets |
| Max fuel consumption | 5.96 kg/h |
| Weight | 16 kg |
| Mounting window | Ø 135 mm |
| Min. chamber depth | ≥400 mm |
| Chamber vacuum | 10 Pa |
| Power consumption (operation) | 50 W |
| External feeder length | 0.5 – 4.0 m |
| Power supply | 230 V AC / 50 Hz |
| Technologies | Overpressure Combustion System, Air Blade System, InCroX®, X.Board System, X.Gnite System, S.Control Controller, Quick assembly system, Hybrid Drive System, Easy combustion chamber maintenance, X.Plug System, X.Shell System, Quick Igniter Replacement System, Inlet with fire barrier, Rotating Combustion Chamber System |
wymiary

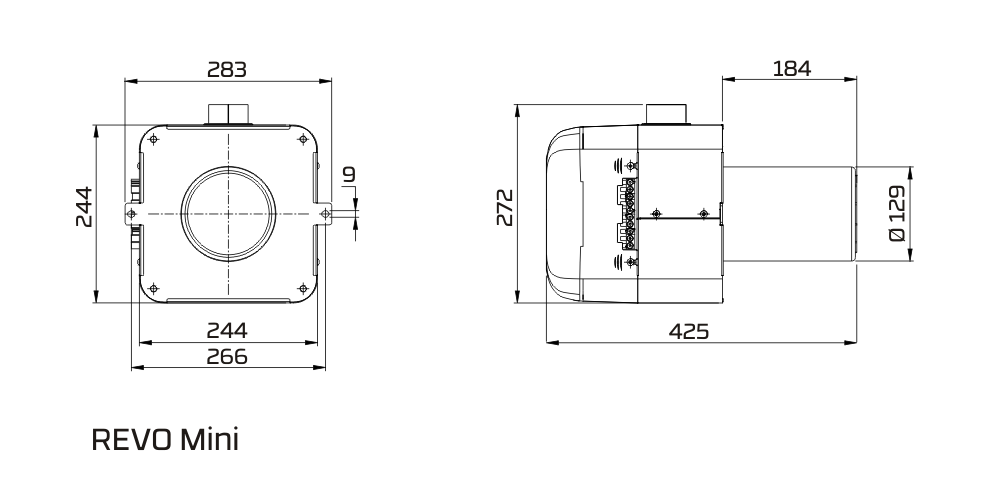

Dimensions
zestaw
Set
The set includes:
- Revo 26kW burner with InCroX® rotary combustion chamber
- S.Control Controller
- Galvanised external feeder 2 m
- Operation and installation manual
- Warranty card
Available optionally: Lambda Control (lambda probe), EcoNET / Net Control 2 (remote control via the internet), 181 mm spacer flange for non-standard mounting openings.
