Revo 10kW BURNER

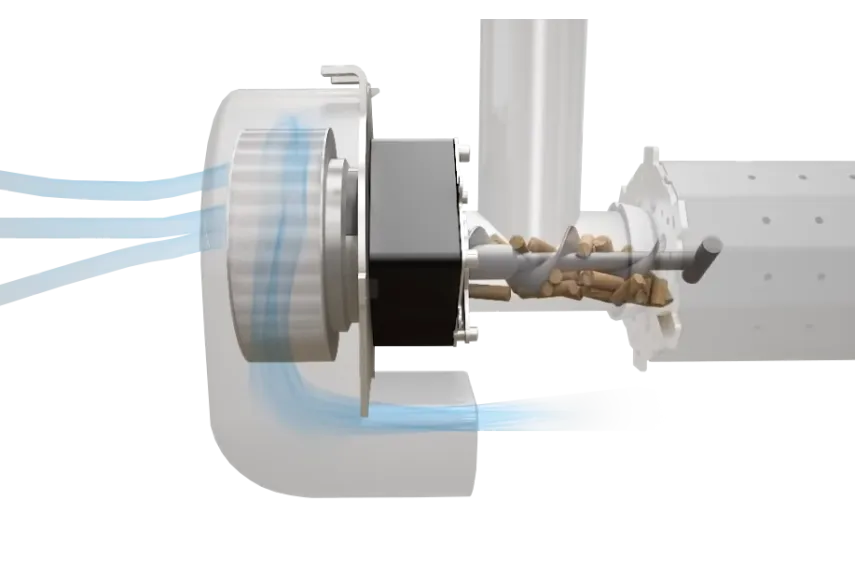

Pellet burner. InCroX® rotary combustion chamber with Hybrid Drive System — internal feeder motor and fan motor combined into a single unit with a Hall sensor, enabling precise dosing of fuel and air. Efficiency up to 99%, for Class 5 Ecodesign boilers.
Power range: 3.0 to 10 kW
Combustion chamber
Air and fuel
Electronics and control
Safety
Assembly and service
Specification
Specification
| Minimum power | 3.0 kW |
|---|---|
| Maximum power | 10 kW |
| Combustion efficiency | up to 99% |
| Ecodesign class | Class 5 |
| Compatible fuels | wood pellets Ø 6–8 mm, low-quality wood pellets |
| Max fuel consumption | 2.29 kg/h |
| Weight | 14 kg |
| Mounting window | Ø 135 mm |
| Min. chamber depth | ≥300 mm |
| Chamber vacuum | 10 Pa |
| Power consumption (operation) | 50 W |
| Power consumption (ignition) | 367 W |
| External feeder length | 0.5 – 4.0 m |
| Power supply | 230 V AC / 50 Hz |

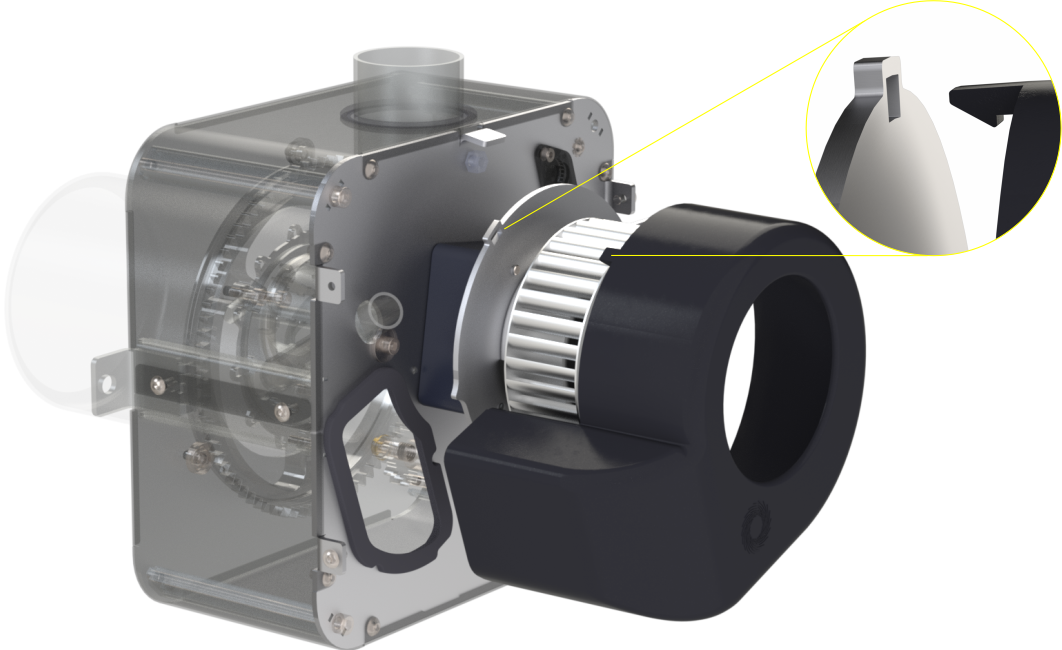

| Technologies | Overpressure Combustion System, Air Blade System, InCroX®, X.Board System, X.Gnite System, S.Control Controller, Quick assembly system, Hybrid Drive System, Easy combustion chamber maintenance, X.Plug System, X.Shell System, Quick Igniter Replacement System, Inlet with fire barrier, Rotating Combustion Chamber System |
wymiary
Dimensions
zestaw
Set
The set includes:
- Revo 10kW burner with InCroX® rotary combustion chamber
- S.Control Controller
- Galvanized external feeder 2 m
- Operation and installation manual
- Warranty card
Optionally available: Lambda Control (lambda probe), EcoNET / Net Control 2 (remote control via the internet), 109 mm spacer flange for non-standard mounting openings.
