ECOS Models
Pellet burners
ECOS lineNEW!
Burners with a moving combustion chamber system
enabling combustion of low-quality pellets.
enabling combustion of low-quality pellets.
The ECOS line comprises medium-power pellet burners for commercial installations. At the heart of the burner is a stepped moving grate (Multistage Grate System) made of heat-resistant cast iron InCroX®. The Easy Clean-Out System allows the grate section to be removed as a module — drastically reducing seasonal service time. The design ensures effective ash removal and stable combustion conditions for wood pellets and agri-pellets.
PM dust emission ≤20 mg/m³.
PM dust emission ≤20 mg/m³.
Power range
from 50 to 250 kW
ECOS line technologies
ECOS is a line of medium-power pellet burners with the Easy Clean-Out System. Stepped grate with InCroX® and easy maintenance. Discover the advanced technologies.
Compare models in this series
Compare models in this series
| Parameter | ECOS 50 | ECOS 70 | ECOS 100 | ECOS 130 | ECOS 160 | ECOS 200 | ECOS 250 |
|---|---|---|---|---|---|---|---|
| Power range | 15–50 kW | 21–70 kW | 30–100 kW | 39–130 kW | 48–160 kW | 60–200 kW | 75–250 kW |
| Efficiency | up to 99% | up to 99% | up to 99% | up to 99% | up to 99% | up to 99% | up to 99% |
| Max fuel consumption | 11.46 kg/h | 16.04 kg/h | 22.92 kg/h | 29.79 kg/h | 36.67 kg/h | 45.83 kg/h | 57.29 kg/h |
| Weight | 48 kg | 48 kg | 51.5 kg | 60 kg | 64.5 kg | 75 kg | 82.5 kg |
| Mounting window | □ 260 | □ 260 | □ 260 | □ 300 | □ 300 | □ 340 | □ 340 |
| Min. chamber depth | ≥650 | ≥790 | ≥850 | ≥930 | ≥1050 | ≥1150 | ≥1250 |
| Feeder length | 2.0 – 5.0 | 2.0 – 5.0 | 2.0 – 5.0 | 2.0 – 5.0 | 2.0 – 5.0 | 2.0 – 5.0 | 2.0 – 5.0 |
| Power supply | 230 V AC / 50 Hz | 230 V AC / 50 Hz | 230 V AC / 50 Hz | 230 V AC / 50 Hz | 230 V AC / 50 Hz | 230 V AC / 50 Hz | 230 V AC / 50 Hz |
| Details → | Details → | Details → | Details → | Details → | Details → | Details → |

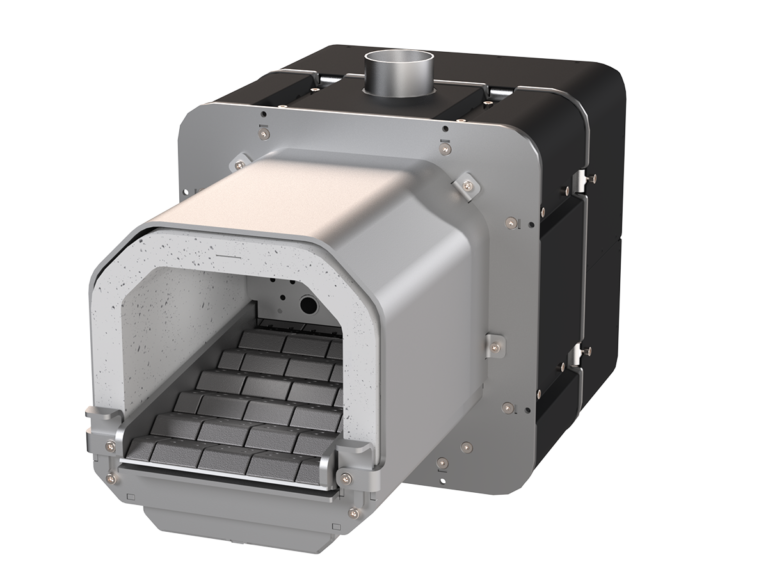

ECOS 50kW Burner
- Power range:
- 15–50 kW
- Efficiency:
- up to 99%
- Max fuel consumption:
- 11.46 kg/h
- Weight:
- 48 kg
- Mounting window:
- □ 260
- Min. chamber depth:
- ≥650
- Feeder length:
- 2.0 – 5.0
- Power supply:
- 230 V AC / 50 Hz

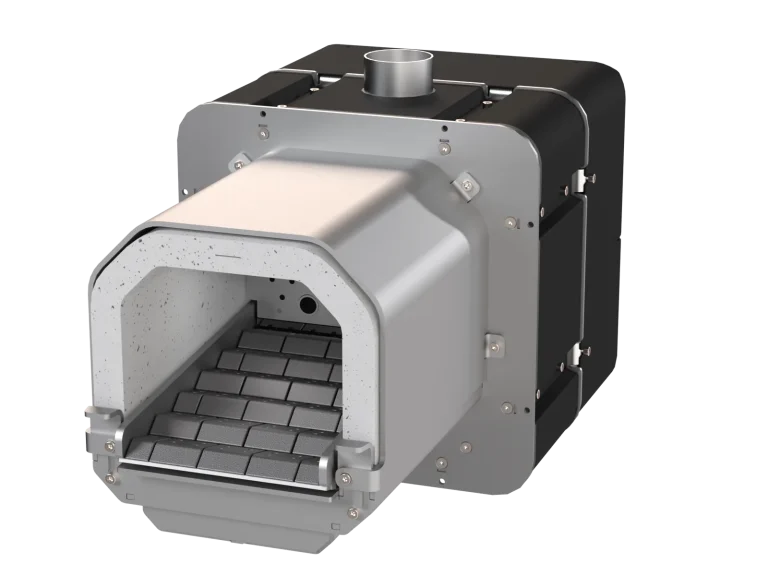

ECOS 70kW Burner
- Power range:
- 21–70 kW
- Efficiency:
- up to 99%
- Max fuel consumption:
- 16.04 kg/h
- Weight:
- 48 kg
- Mounting window:
- □ 260
- Min. chamber depth:
- ≥790
- Feeder length:
- 2.0 – 5.0
- Power supply:
- 230 V AC / 50 Hz
ECOS 100kW Burner
- Power range:
- 30–100 kW
- Efficiency:
- up to 99%
- Max fuel consumption:
- 22.92 kg/h
- Weight:
- 51.5 kg
- Mounting window:
- □ 260
- Min. chamber depth:
- ≥850
- Feeder length:
- 2.0 – 5.0
- Power supply:
- 230 V AC / 50 Hz

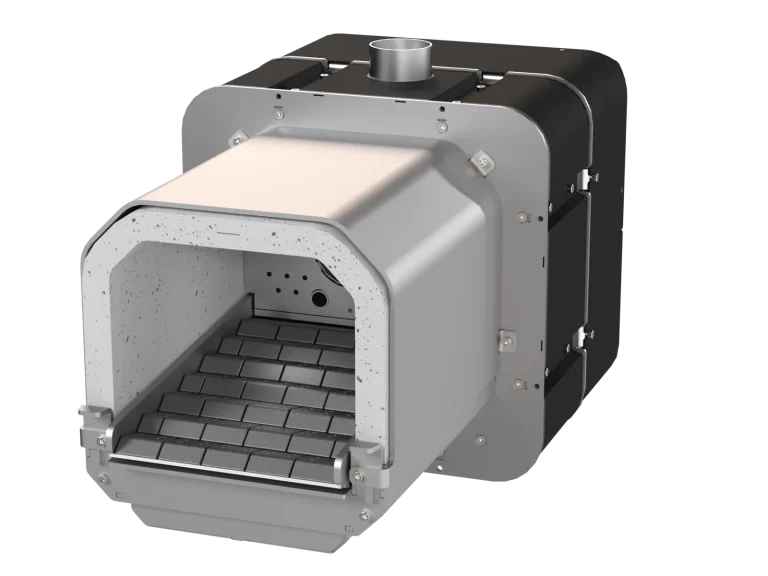

ECOS 130kW Burner
- Power range:
- 39–130 kW
- Efficiency:
- up to 99%
- Max fuel consumption:
- 29.79 kg/h
- Weight:
- 60 kg
- Mounting window:
- □ 300
- Min. chamber depth:
- ≥930
- Feeder length:
- 2.0 – 5.0
- Power supply:
- 230 V AC / 50 Hz
ECOS 160kW Burner
- Power range:
- 48–160 kW
- Efficiency:
- up to 99%
- Max fuel consumption:
- 36.67 kg/h
- Weight:
- 64.5 kg
- Mounting window:
- □ 300
- Min. chamber depth:
- ≥1050
- Feeder length:
- 2.0 – 5.0
- Power supply:
- 230 V AC / 50 Hz

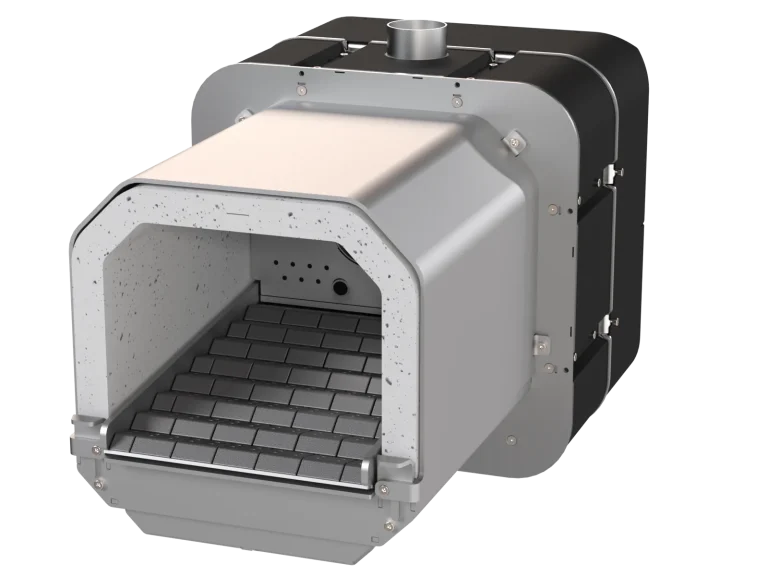

ECOS 200kW Burner
- Power range:
- 60–200 kW
- Efficiency:
- up to 99%
- Max fuel consumption:
- 45.83 kg/h
- Weight:
- 75 kg
- Mounting window:
- □ 340
- Min. chamber depth:
- ≥1150
- Feeder length:
- 2.0 – 5.0
- Power supply:
- 230 V AC / 50 Hz
ECOS 250kW Burner
- Power range:
- 75–250 kW
- Efficiency:
- up to 99%
- Max fuel consumption:
- 57.29 kg/h
- Weight:
- 82.5 kg
- Mounting window:
- □ 340
- Min. chamber depth:
- ≥1250
- Feeder length:
- 2.0 – 5.0
- Power supply:
- 230 V AC / 50 Hz
