X Line

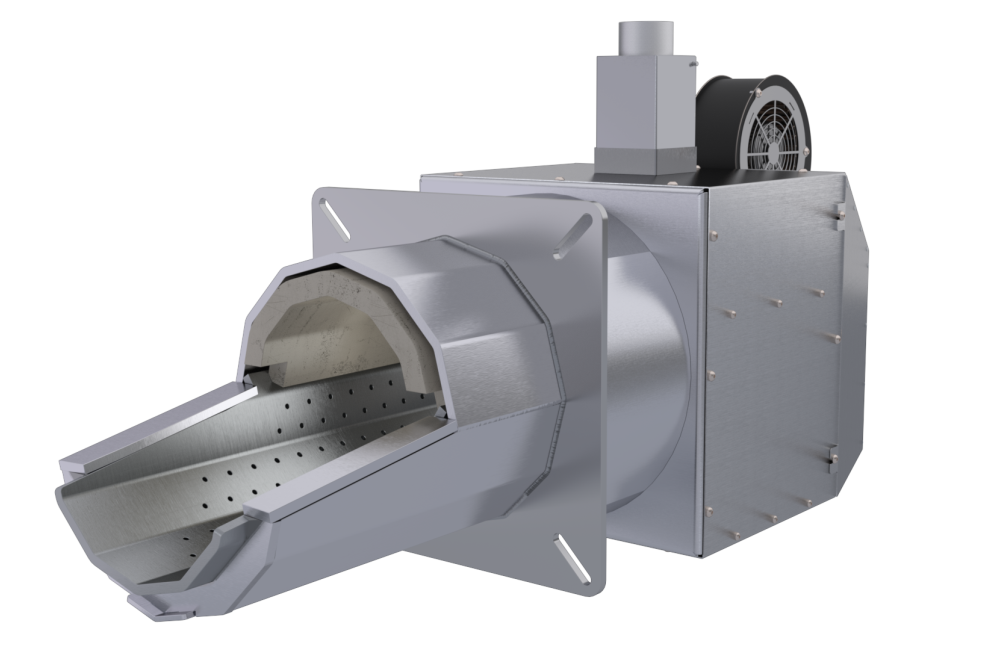

X 190 BURNER

A durable, reliable pellet burner equipped with Combustion Chamber Fuel Mixing technology.

POWER RANGE: 65 – 190 kW

Combustion chamber

Fuel Mixing System

The Internal Feeder doses pellets into the combustion chamber while simultaneously performing a fuel mixing function. It supports the even distribution of fuel across the grate and the removal of ash, optimising the combustion process.

Read more about this technology

Overpressure Combustion System

A system that delivers air centrally into the combustion chamber to increase combustion efficiency and safety. The air intensifies flame swirl, while the use of a Venturi nozzle reduces the risk of flame backflow.

Read more about this technology

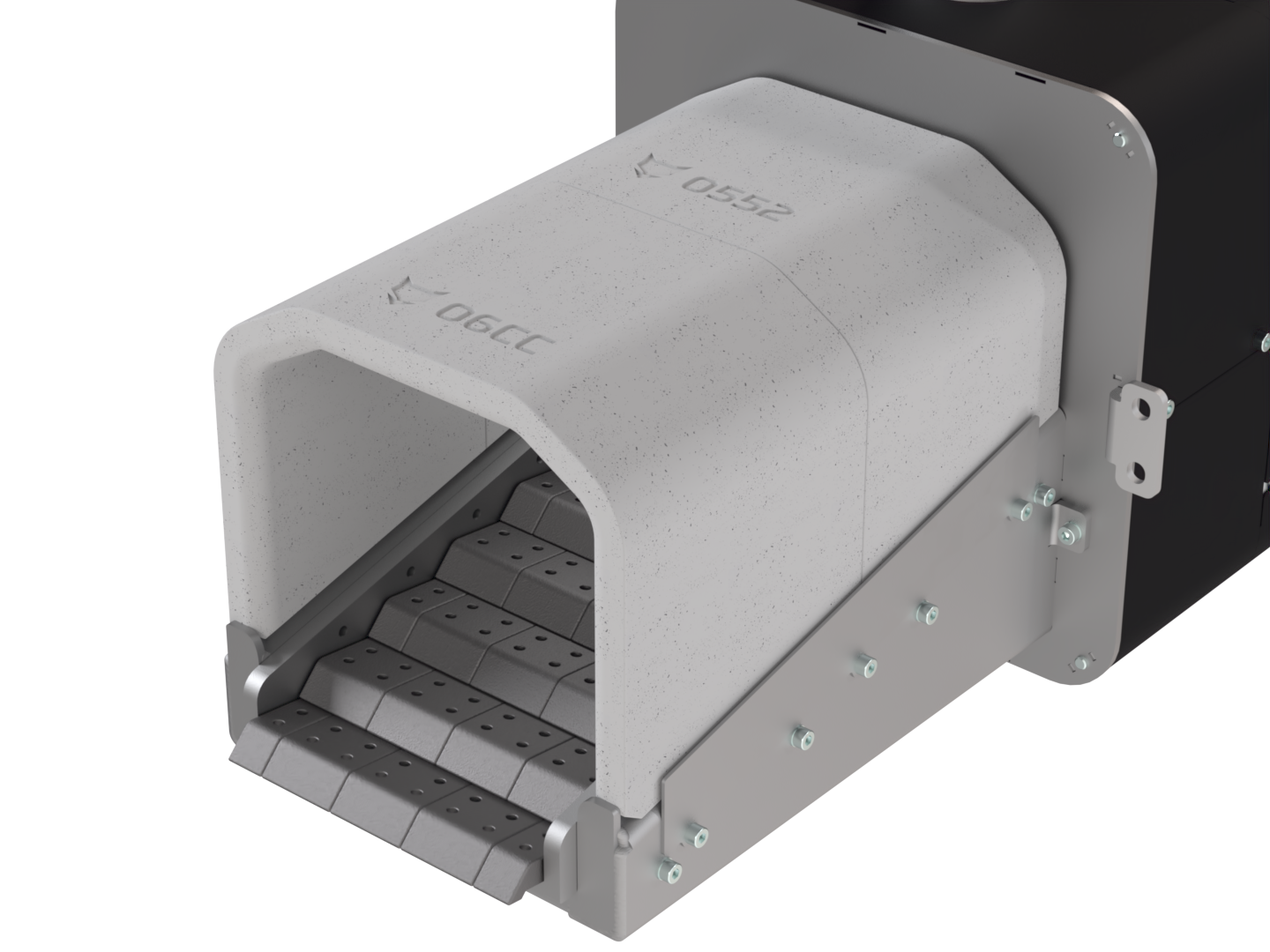

Refractory ceramic insert

We have used ceramic materials that made their technological debut in high-power burners, where they operated under constant and high thermal load. Materials: heat-resistant concrete reinforced with polypropylene fibres and dispersed reinforcement made of heat-resistant wire.

Read more about this technology

Electronics and control

S.Control Controller

An advanced burner controller responsible for precise management of fuel feeding, fan operation, ignition, and safety systems. It optimises the combustion process in real time.

View the S.Control controller

Safety

Fuel Chute with Fire Barrier

An integrated safety system based on a chute with a counterweighted hinged flap, which forms a physical barrier between the combustion chamber and the fuel feeder.

Read more about this technology

Assembly and service

Mounting clips

Clip system enabling quick installation of the X line burner in the boiler, without the need for traditional pins and mounting bolts.

Read more about this technology

Specification

Specification

Minimum power	65 kW
Maximum power	190 kW
Combustion efficiency	up to 99%
Ecodesign class	Class 5
Compatible fuels	wood pellets Ø 6–8 mm, pits: dry cherry and olive pits, oats
Weight	55 kg
Power consumption (operation)	120 W
Power supply	230 V AC / 50 Hz
Technologies	Overpressure Combustion System, Fuel Mixing System, Fuel Chute with Fire Barrier, S.Control Controller, Mounting clips, Refractory ceramic insert

wymiary

Dimensions

zestaw

Set

The set includes:

• Revo EC 16 kW burner with InCroX® rotary combustion chamber
• S.Control Controller
• External feeder

pliki

Downloads

Instrukcja Sterownika Standard

pdf (3 MB)

Instrukcja Sterownika Touch

pdf (3 MB)
