X Line

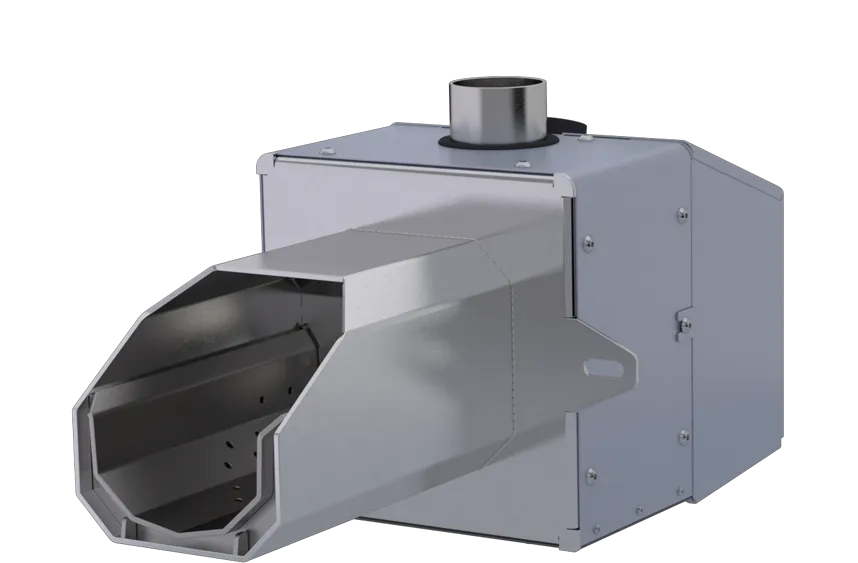

X MINI BURNER

A durable, reliable pellet burner equipped with Combustion Chamber Fuel Mixing technology.

POWER RANGE: 5 – 26 kW

PellasX - X mini burner

Combustion chamber

PellasX - mieszanie

Fuel Mixing System

The Internal Feeder doses pellets into the combustion chamber while simultaneously performing a fuel mixing function. It supports the even distribution of fuel across the grate and the removal of ash, optimising the combustion process.
Read more about this technology
PellasX - overpressure combustion_BLACK_2

Overpressure Combustion System

A system that delivers air centrally into the combustion chamber to increase combustion efficiency and safety. The air intensifies flame swirl, while the use of a Venturi nozzle reduces the risk of flame backflow.
Read more about this technology

Electronics and control

S.Control controller — touch panel

S.Control Controller

An advanced burner controller responsible for precise management of fuel feeding, fan operation, ignition, and safety systems. It optimises the combustion process in real time.
View the S.Control controller
Specification

Specification

Minimum power 5 kW
Maximum power 26 kW
Combustion efficiency up to 99%
Ecodesign class Class 5
Compatible fuels wood pellets Ø 6–8 mm, pits: dry cherry and olive pits, oats
Weight 12.4 kg
Power consumption (operation) 60 W
Power supply 230 V AC / 50 Hz
Technologies Overpressure Combustion System, Fuel Mixing System, S.Control Controller
wymiary

Dimensions

PellasX - pellasx_x-mini.jpg
zestaw

Set

The set includes:

  • Revo EC 16 kW burner with InCroX® rotary combustion chamber
  • S.Control Controller
  • External feeder
pliki

Downloads

Instrukcja Sterownika Standard
pdf (3 MB)
Instrukcja Sterownika Touch
pdf (3 MB)
