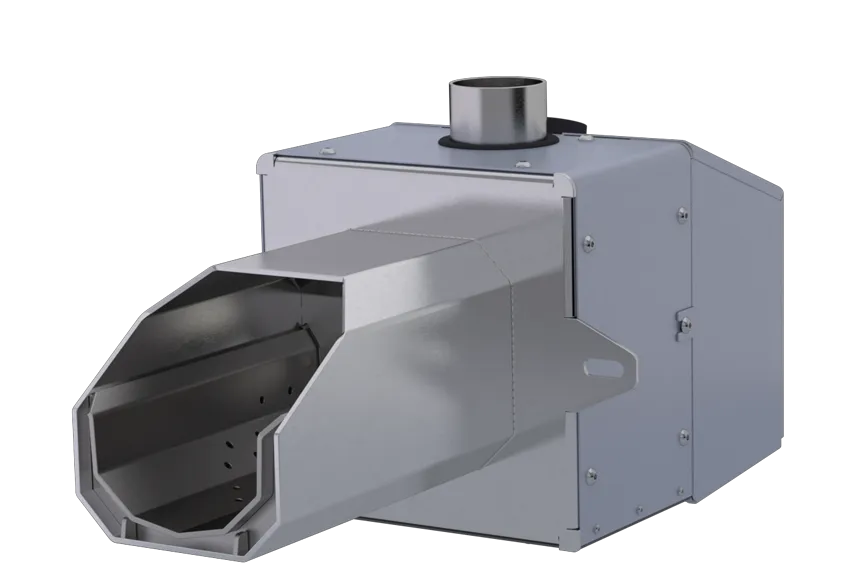

X MINI 35 BURNER
A durable, reliable pellet burner equipped with Combustion Chamber Fuel Mixing technology.
POWER RANGE: 8 – 35 kW
Combustion chamber
Electronics and control
Specification
Specification
| Minimum power | 8 kW |
|---|---|
| Maximum power | 35 kW |
| Combustion efficiency | up to 99% |
| Ecodesign class | Class 5 |
| Compatible fuels | wood pellets Ø 6–8 mm |
| Weight | 14.3 kg |
| Power consumption (operation) | 60 W |
| Power supply | 230 V AC / 50 Hz |

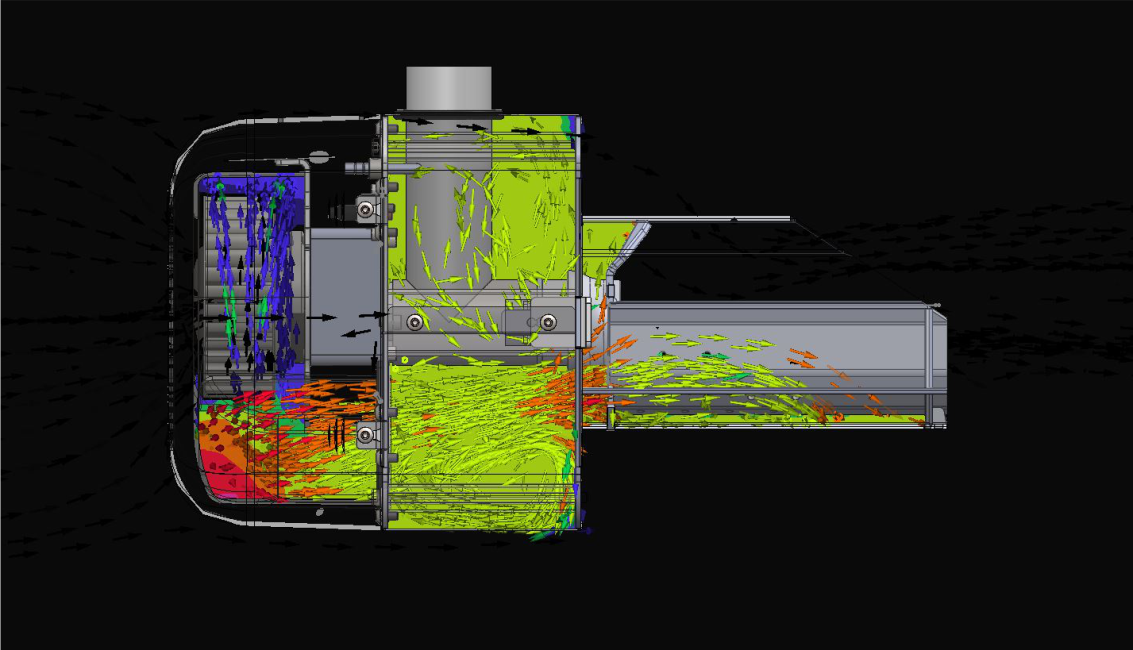

| Technologies | Overpressure Combustion System, Fuel Mixing System, S.Control Controller |
wymiary

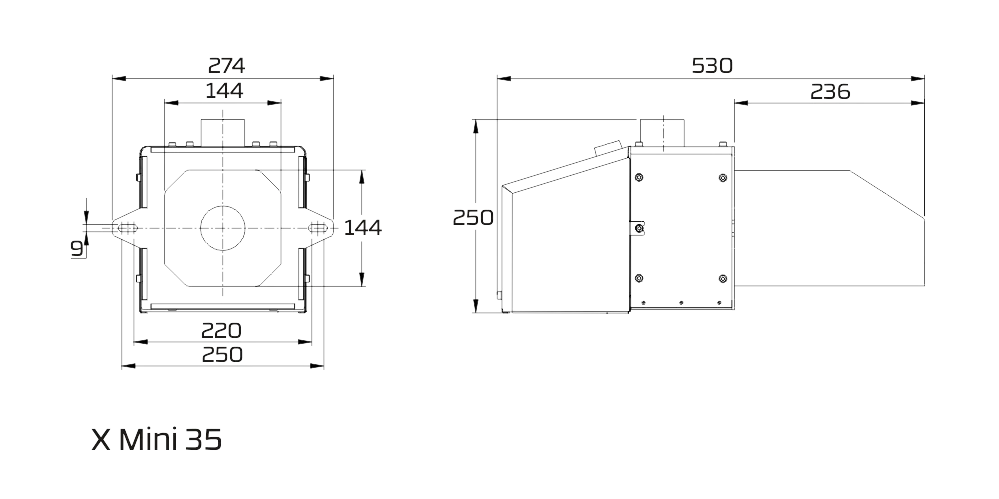

Dimensions
zestaw
Set
The set includes:
- Revo EC 16 kW burner with InCroX® rotary combustion chamber
- S.Control Controller
- External feeder
pliki
